Application

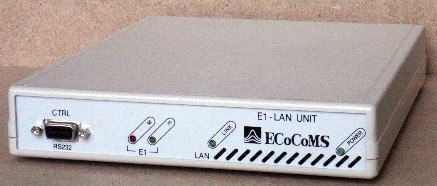

• The device converts interface Ethernet10 Base T to interface E1
• High quality of service
• Effective solution with easy maintenance

Technical Description

• Interface Ethernet:
  • Mode: Ethernet- 10 Base T
  • Number of ports: 1
  • Transperent MAC-Layer Bridge (IEEE 802.1d)
  • Up to 10000 MAC adresses
  • Encapsulation: HDLC
  • Mode: "Full duplex"
  • Compression
  • Filtration
• Interface E1:
  • Mode: E1 ITU-T G.703/G.704
  • Data rates: from 64 kbit/s to 2048 kbit/s
  • Connector: RJ 45
  • Line code: HDB3
  • Number of ports: 1
  • Max cable attenuation: 1024kHz/6dB
• Management: local and remote
• Management interface: RS.232
• Power supply
  • With AC/DC converter: 230V/22V, AC/DC
• Temperature: from -5°C to +45°C
• Dimension: 238x189x31 mm
• Weight: 600g
