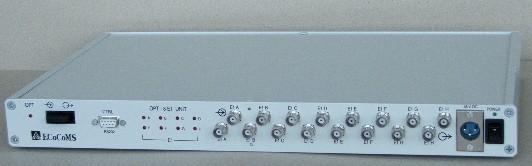

| Optical multiplexer 8 x E1 |
 |
- Line interface
- Optical Transmitter: Laser
- Optical Receiver: PIN photodiode
- Optical cable type: "single mode"
- Number of fibers: 2
- Optical TX level: -13dBm
- Optical RX level: -34dBm
- Wave length: 1300nm
- Code: NRZ scrambled
- Connector: SC/PC
- Bit rate: 8 x 2048 kbit/s payload
- Max. overall cable attenuation: 21dB
- User interfaces E1:
- Number of ports: 8
- Bit rate : 2048 kbit/s ±50ppm; G.703;
- Code: HDB3
- Impedance: 75 ohms or 120 ohms via adapter
- Connector: BNC
- Management system: local and remote
- Management interface: RS.232
- Power supply
- Direct power supply: -48V DC
- With AC/DC converter: 230V/22V, AC/DC
- Temperature: from 0°C to +50°C
- Dimension: 435x355x44 mm
- Weight: 800g
|
|
|
