Access Network Applications

The business of most companies in the world depends on the exchange of information in the global network.

The development of the economy challenges the managers - they need to achieve better results with fewer resources. This leads to a search for alternative ways of maximizing the use of the network and improving its quality, management and effectiveness.

One of the main approaches is the evaluation of the business demand and dimensions, as well as the targeted market. ECoCoMS offers solutions for corporate, medium and small business clients.

The valuable experience in telecommunications and information systems qualifies us to implement and provide to our customers a complete technical solution.
ECoCoMS proposes solutions which can be distinguished by high availability, functionality and compatibility with all basic protocols and standards for voice and data networks. They are based on some requirements of the access platform:

Expansion of the telecommunication service areas
Provisioning of various types flexible and efficient services
Economically effective solutions
Consolidated access of analogue and ISDN subscribers
Digitalization of the access network
User-friendly assembly and installation of the equipment and reduction of its size
Provisioning of a management and monitoring system

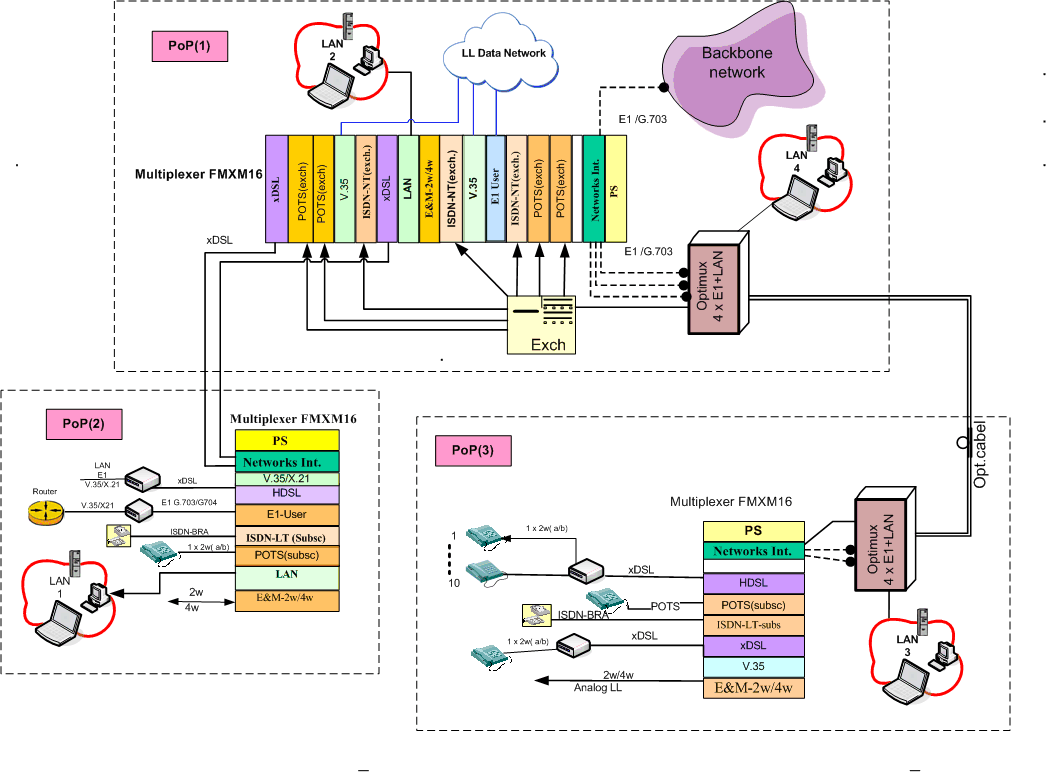

Example 1: Provisioning of services (voice and data) over copper or optical cabling to the remote buildings of a medium business.

Along with the tradional copper pair access, the optical cabling gains more and more popularity, because of its better performance. The investment already made in the copper network is the reason not to substitute it entirely with optical cabling. The most efficient solution will be a combination of both copper and optical networks.

Solution: ECoCoMS proposes a solution with the products: Optical multiplexers, flexible solution with multiplexer E1 and access devices, interconnected in common solution. The purpose is: Fast and user-friendly assembly, Centralized management and monitoring; Stability of the equipment and a competitive price; Warranty and contract support;

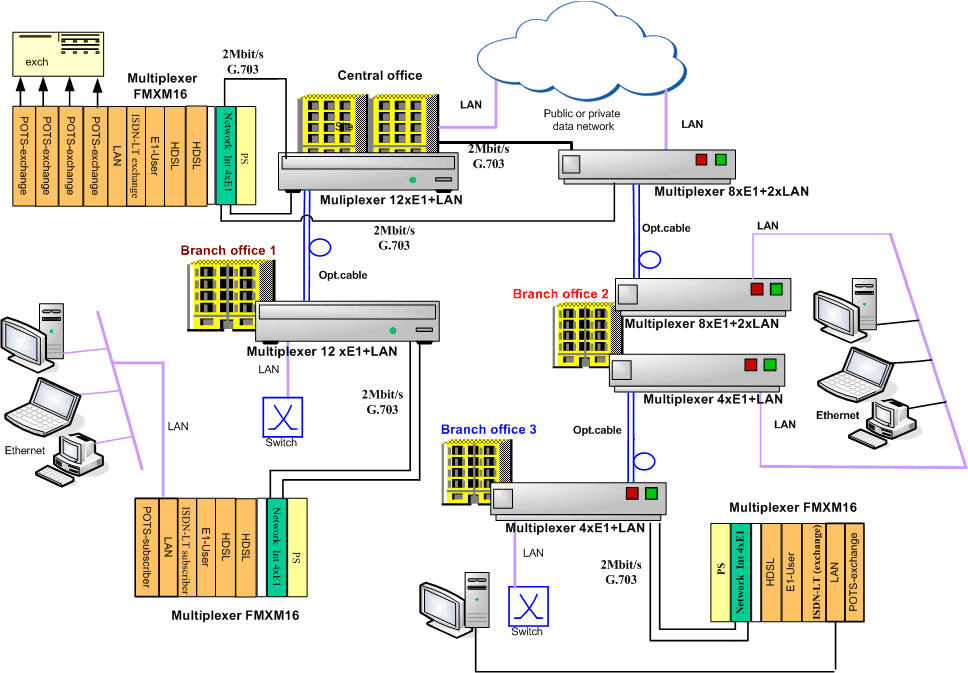

Example 2: Provisioning of services (voice and data) over optical cabling to the remote buildings of a medium business.

It is already provided: the organization of the interconnections, the bandwidth between the buildings and the connection to the network of a telecom operator. The future expansion of the network is taken into account.

Solution: ECoCoMS proposes a solution with the products: Multiplexers, Cross Connectors and access devices, so that the following services can be provided: ISDN BRI, POTS, ISDN BRI, Ethernet, digital and analogue leased lines. The purpose is: Centralized management and monitoring; Stability of the equipment and a competitive price; Warranty and contract support;

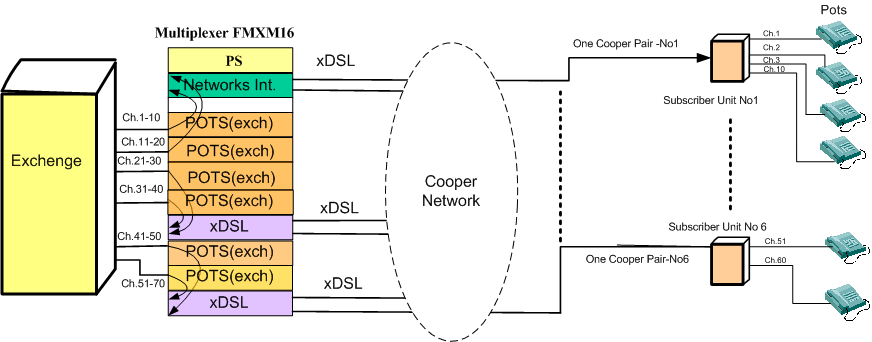

Example 3: Provisioning of voice services over copper pairs to residential buildings and offices.

There are access points in each one of the buildings. The number of the access points depends on the number of the subscribers.

Solution: ECoCoMS proposes the following solution:
Operator side - Multiplexer E1 with Subscriber Unit (exchange), HDSL subscriber unit and Control Unit with HDSL network interface.
Customer side - access device (modem).
The cross connect between the network and user interfaces and between the subscriber unit and control unit with HDSL interface enables the voice service provisioning.

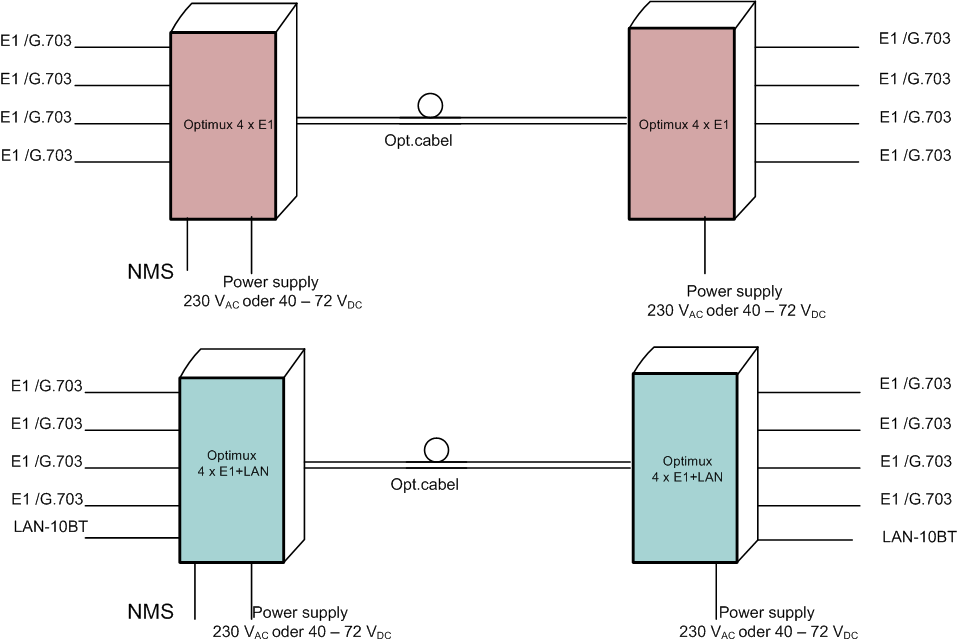

Example 4: Providing a point-to-point digital connection for provisioning of E1 digital streams and LAN over optical cabling for business clients.

Solution: ECoCoMS proposes a solution with the products: Optical multiplexers from the Optimux series. The purpose is: Fast and user-friendly assembly, Centralized management and monitoring; Stability of the equipment and a competitive price; Warranty and contract support;
