Area Network Applications

Interconnection in a carrier telecommunications network for support of voice and data services.

The purpose is implementation and optimization of a network infrastructure between the points of presence of the carrier.

The network equipment and the interconnection of all the points of presence is designed according to a technical assignment, which takes into consideration the following:

The technical research of the assignment and the transmission media available
The organization of the interconnection points and the total capacity of the points of presence based on the current implementation, as well as new and future requirements for service provisioning
The list of requirements and the design of the technical solution
Marketing research for the realization of the solution according to technical and economic parameters
Implementation approaches

Example 1: Carrier 1 needs to interconnect with Carrier 2, therefore Carrier 1 needs a connection to the colocation rooms of Carrier 2, located in two different urban areas PoP(1) and PoP(2). There is optical connectivity already installed between the two carriers.

Carrier 1 needs to provide the following:

Digital leased line 34M framed with end points PoP(1) and town A Central Office
Digital leased line 2M framed with end points PoP(1) and town A Central Office
Digital leased line 8M framed with end points PoP(2) and town B Central Office
Digital leased line 2M framed with end points PoP(2) and town B Central Office

Solution: ECoCoMS proposes a solution with the products: Multiplexer FMX-E1; Multiplexer PDH-E2; Multiplexer PDH-E3 protected; Cross Connector DCC 16xE1. The purpose is: Centralized management and monitoring; Stability of the equipment and a competitive price; Warranty and contract support; Free update of the software.

Example 2: A carrier needs to connect the main PoP with two urban areas PoP(1) and PoP(2). There is optical connectivity between the main PoP and one of the target PoP and there is copper connectivity between PoP(1) and PoP(2). Multi-service multiplexer could be applied in service provisioning.

Solution: ECoCoMS proposes a solution with the products: Multiplexers FMXM-16; Multiplexer PDH-E3 with traffic reservation; Cross Connectors DCC 16xE1. The purpose is: Centralized management and monitoring; Stability of the equipment and a competitive price; Warranty and contract support; Free update of the software.

Example 3: Telecom service provider needs to expand the network with two more points of presence PoP(1) and PoP(2). There is optical connectivity between the two points.

Solution: ECoCoMS proposes a solution with the products: Multiplexers FMXM-16; Multiplexer PDH-E2; Multiplexer PDH-E3 with traffic reservation; Cross Connectors DCC 16xE1. The purpose is: Centralized management and monitoring; Stability of the equipment and a competitive price; Warranty and contract support; Free update of the software.

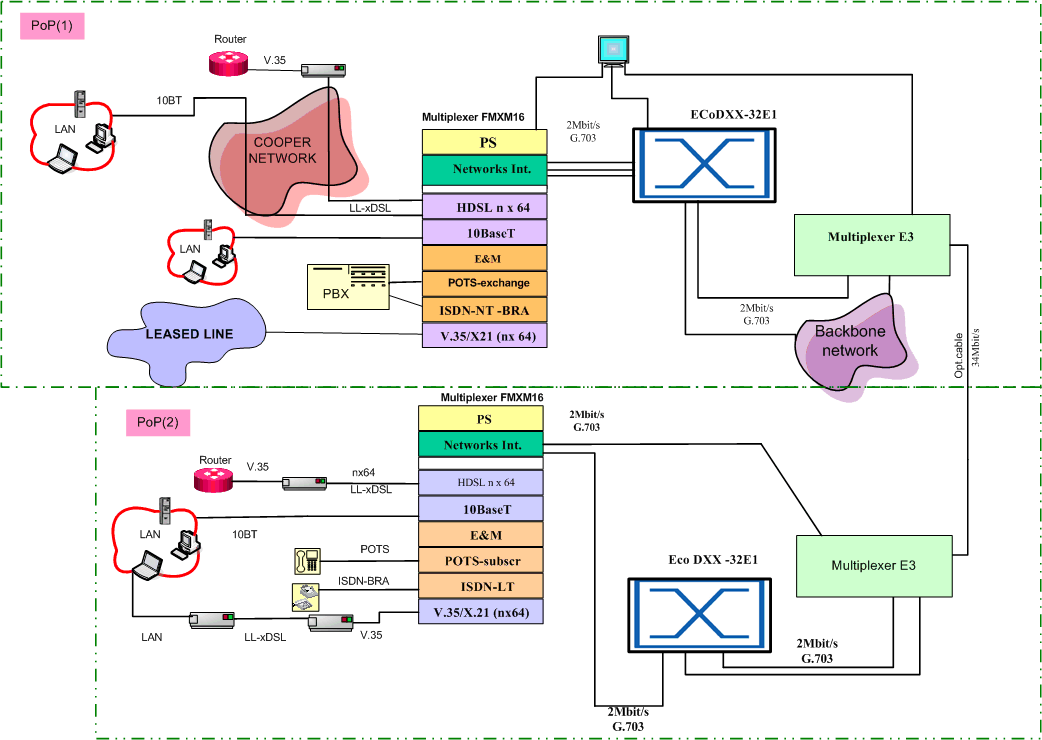

Example 4: A carrier needs to connect the main PoP with two urban areas PoP(1) and PoP(2). There is optical connectivity between the main PoP and each one of the target PoPs. The task is to provide services to customers in the areas close to the two PoPs.

Solution: ECoCoMS proposes a solution with the products: Multiplexers FMXM-16 with various interface units; Multiplexer PDH-E2; Multiplexer PDH-E3 with traffic reservation; Cross Connectors ECoDXX-32E. The purpose is: Centralized management and monitoring; Stability of the equipment and a competitive price; Warranty and contract support; Free update of the software.
