Transmission Networks Applications

The choice of transmission network technologies and access network depend on specific conditions and are determined by various factors like the type of the traffic, current cable infrastructure, expansion alternatives, operations of the equipment etc.

The purpose is the provisioning of a converged network infrastructure and optimizing of the communication between the points of presence.

One of the main approaches is the evaluation of the business demand and dimensions, as well as the targeted market.

ECoCoMS focuses on meeting the expectations of its clients and on providing products based on the latest information and communication technologies in order to provide efficient solutions under competitive conditions. ECoCoMS products have the following chatasteristics:

Competitive prices
Operate with already deployed cable infrastructure
Excellent integration with existing networks

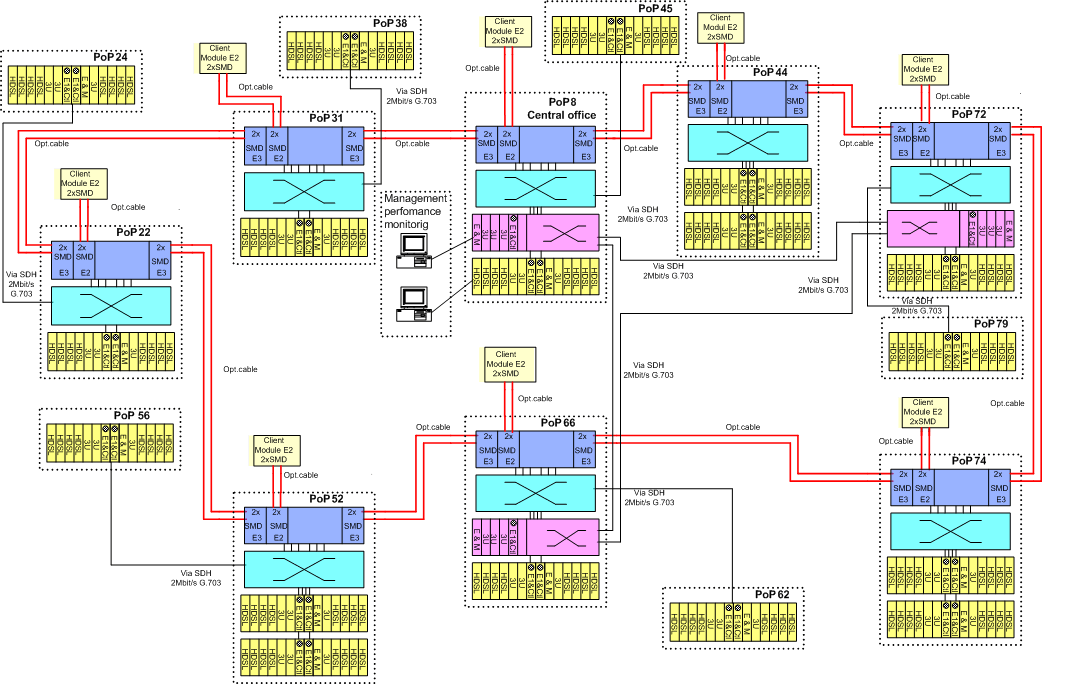

Example 1: Provisioning of transmission network with ring topology for the interconnection of the operator's points of presence and for providing voice and data services. The connection between the operator's points of presence is over optical cabling and the connection between the operator and the client is over copper pair.

Solution: ECoCoMS proposes a solution with a combination of the products: Multiplexers, Cross Connectors, Flexible multiplexer FMX-E1 with the required interfaces for the operator and desktop products for the client. The purpose is: Centralized management and monitoring; Stability of the equipment and a competitive price; Warranty and contract support;

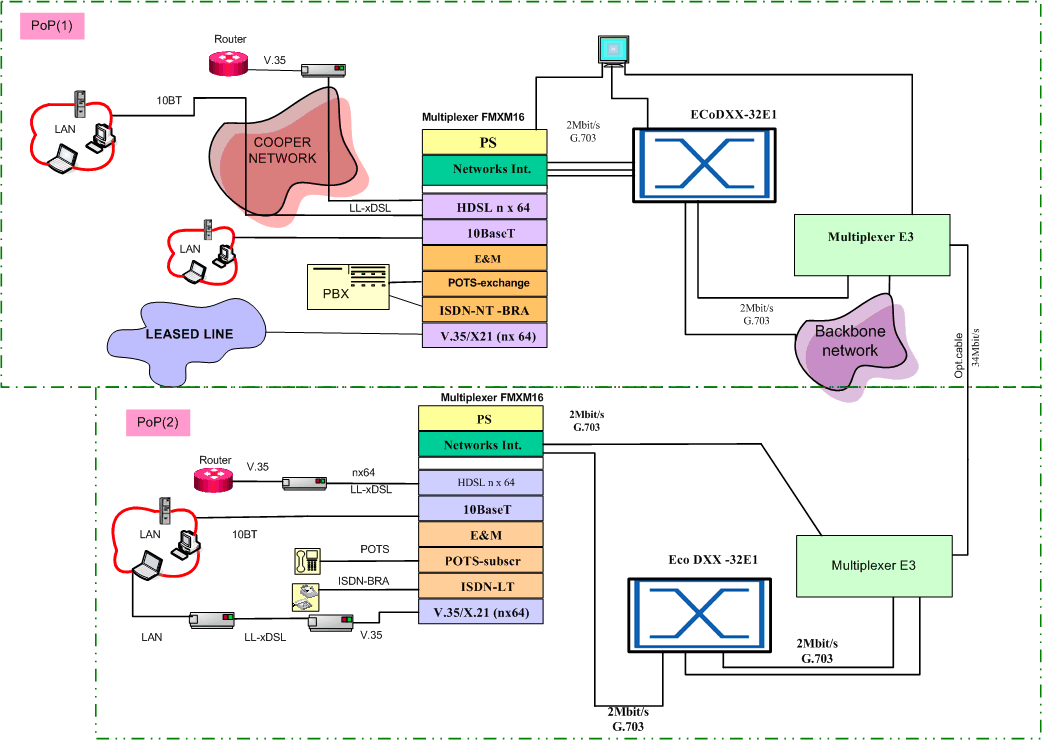

Example 2: Provisioning of transmission network of an operator for a small urban areas.

There is optical connectivity between the points of presence in the small urban areas and the core network of the operator.

Solution: ECoCoMS proposes the following solution: the connection to the core network to be established with Multiplexer PDH in combination with Cross Connector 4xE1 and Flexible multiplexer FMXM-16 with the required user interfaces. This solution is very compact, the multiplexers and the cross connector are placed in one and the same rack. The purpose is: Centralized management and monitoring; Stability of the equipment and a competitive price; Warranty and contract support;
