Modem xDSL - E1

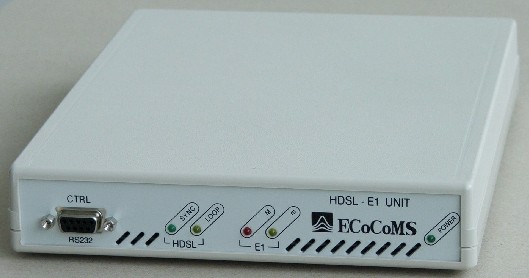

Modem HDSL/SDSL E1 Unit is a table top device that offers high speed network access over copper pairs.

Applications

  • Transparent for 2 Mbit/s leased lines (Nx64)
  • High quality of service
  • Effective solution with easy maintenance

Technical description

  • Line Interface:
    • Mode: 2w HDSL/SDSL G.703/G.704
    • Data rates: from 64 kbit/s to 2048 kbit/s
    • Connector: RJ 45
    • Line code: 2B1Q
    • Max cable attenuation: 36dB@1024kHz
  • User Interface:
    • Type: E1 ITU-T G.703; G.704
    • Number of ports: 1
    • Data rates: from 64 kbit/s to 2048 kbit/s
    • Connector: BNC/ RJ 45
  • Management: local and remote
  • Management interface: RS.232
  • Power supply
    • Direct power supply: -48V DC
    • With AC/DC converter: 230V/22V, AC/DC
  • Temperature: from -5°C to +45°C
  • Dimension: 238x189x31 mm
  • Weight: 600g
