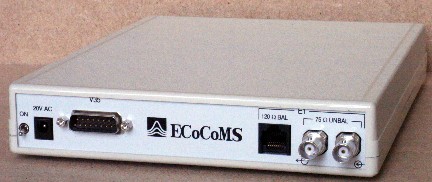

Modem xDSL V.35/X.21 Unit is a table top device that offers high speed network access.

Application

• Transparent for 2 Mbit/s leased lines (Nx64)
• High quality of service
• Effective solution with easy maintenance

Technical description

• Line Interface:
  • Mode: 2w HDSL/SDSL G.703/G.704
  • Data rates: from 64 kbit/s to 2048 kbit/s
  • Connector: RJ 45
  • Line code: 2B1Q
  • Max cable attenuation: 36dB@1024kHz
• User Interface:
  • Type: V.35/X.21
  • Number of ports: 1
  • Data rates: Nx64 Kbit/s (n=1...31) sync
  • Type: DCE
  • Connector: DB15 female
• Management: local and remote
• Management interface: RS.232
• Power supply
  • Direct power supply: -48V DC
  • With AC/DC converter: 230V/22V, AC/DC
• Temperature: from -5°C to +45°C
• Dimension: 238x189x31 mm
• Weight: 600g
