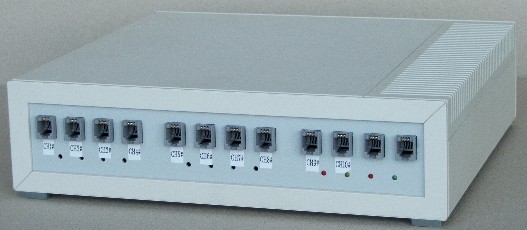

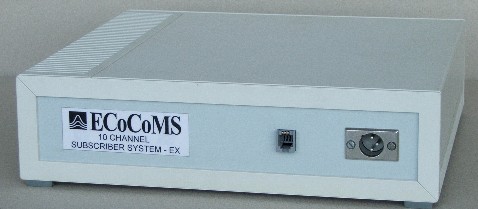

Modem 10 Channel Subscriber System provides 10 POTS lines over one copper pair, CLIP functionality and low noise levels.

Application

• Provisioning of telephone services to regions with small capacity of the copper network
• High quality of service
• Effective solution with easy maintenance

Technical Description

• Line Interface:
  • Mode: 2w HDSL/SDSL
  • Bit rate: 784 kbit/s
  • Line code: 2B1Q
  • Line impedance: 135 ohms
  • Number of ports: 10
• User interface:
  • Type: analogue ITU-T G.712
  • Impedance: 600 ohms
  • Dial method: pulse or tone
  • Maximum loop resistance to subscriber: 1050 ohms
• Power supply
  • With AC/DC converter: 230V/22V, AC/DC
• Temperature: from -5°C to +45°C
• Dimension: 290x260x80 mm
• Weight: 700g
