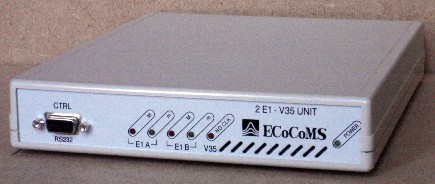

Unit 2 x E1 + V.35/X.21 is a table top device that provisions drop/inserted function between time slots of the V.35/X.21 interface and cross connect between time slots of the E1 ports.

Application

• Part of the E1 stream can be used for data transmission, while the rest of it for other applications, therefore this device is efficient for small businesses or stations
• High quality of service
• Effective solution with easy maintenance

Technical Description

• Interface E1:
  • Mode: E1 ITU-T G.703/G.704
  • Data rates: Nx64 Kbit/s (n=1...31) sync
  • Connector: RJ 45
  • Line code: HDB3
  • Number of ports: 2
  • Max cable attenuation: 1024kHz/6dB
• Interface V.35/X.21:
  • Type: V.35/X.21
  • Number of ports: 1
  • Data rates: Nx64 Kbit/s (n=1...31) sync
  • Type: DCE
  • Connector: DB15 female
• Management: local and remote
• Management interface: RS.232
• Power supply
  • With AC/DC converter: 230V/22V, AC/DC
• Temperature: from -5°C to +45°C
• Dimension: 238x186x31 mm
• Weight: 600g
