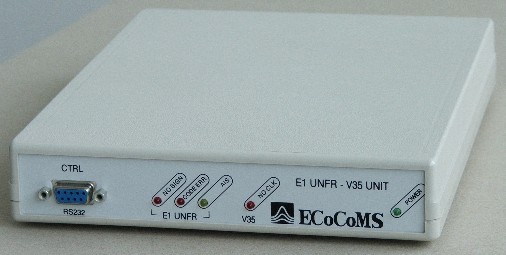

Application

• The device converts interface E1 to interface V.35/X.21
• High quality of service
• Effective solution with easy maintenance

Technical Description

• Interface E1:
  • Mode: E1 ITU-T G.703/G.704
  • Data rates: from 64 kbit/s to 2048 kbit/s
  • Connector: RJ 45
  • Line code: HDB3
  • Number of ports: 2
  • Max cable attenuation: 1024kHz/6dB
• Interface V.35:
  • Type: V.35/X.21
  • Data rates: Nx64 Kbit/s (n=1...31) sync
  • Number of ports: 1
  • Type: DCE
• Management: local and remote (w. additional device)

• Management interface: RS.232
• Power supply
  • With AC/DC converter: 230V/22V, AC/DC
• Temperature: from -5°C to +45°C
• Dimension: 238x189x31 mm
• Weight: 600g
