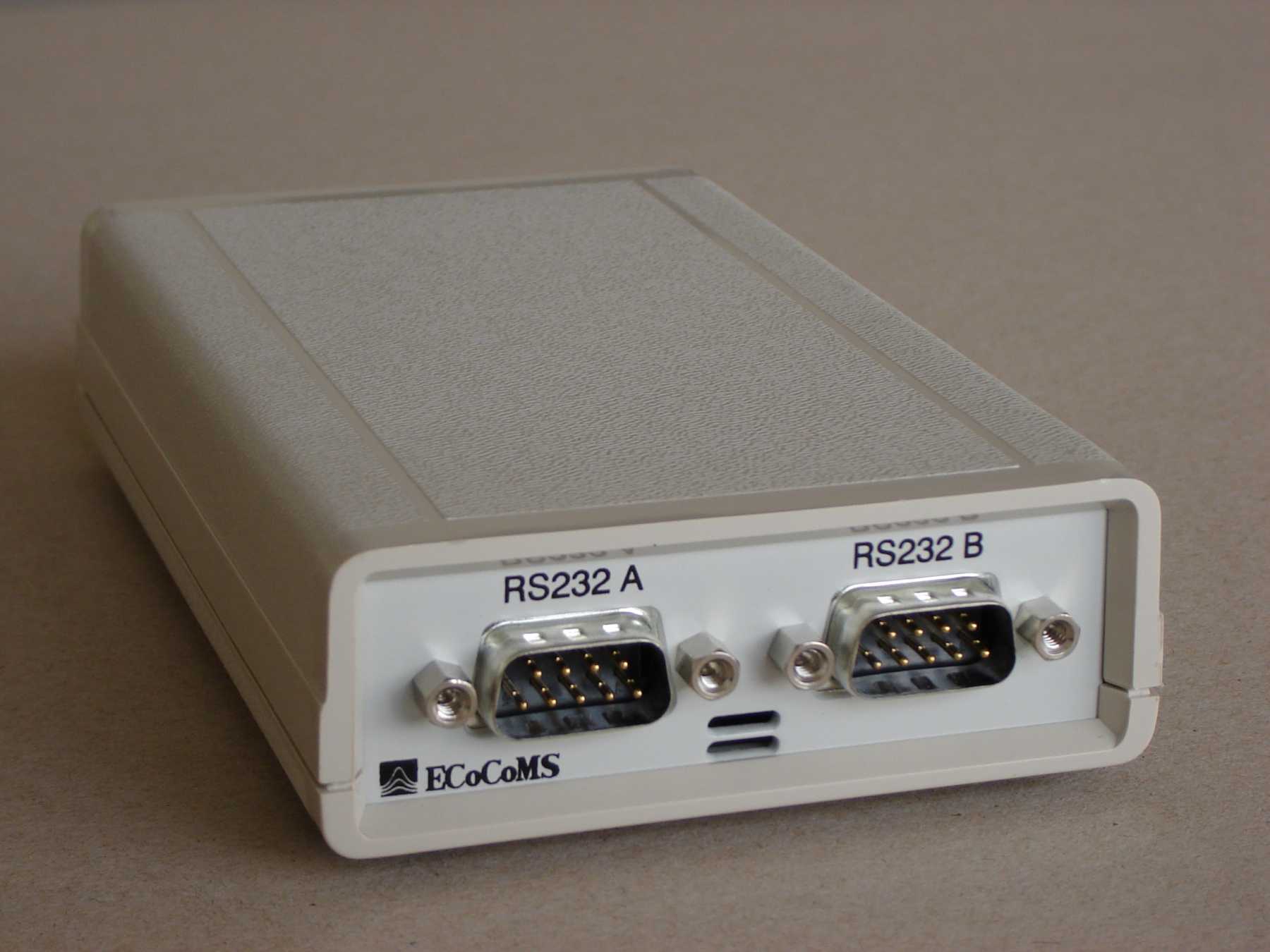

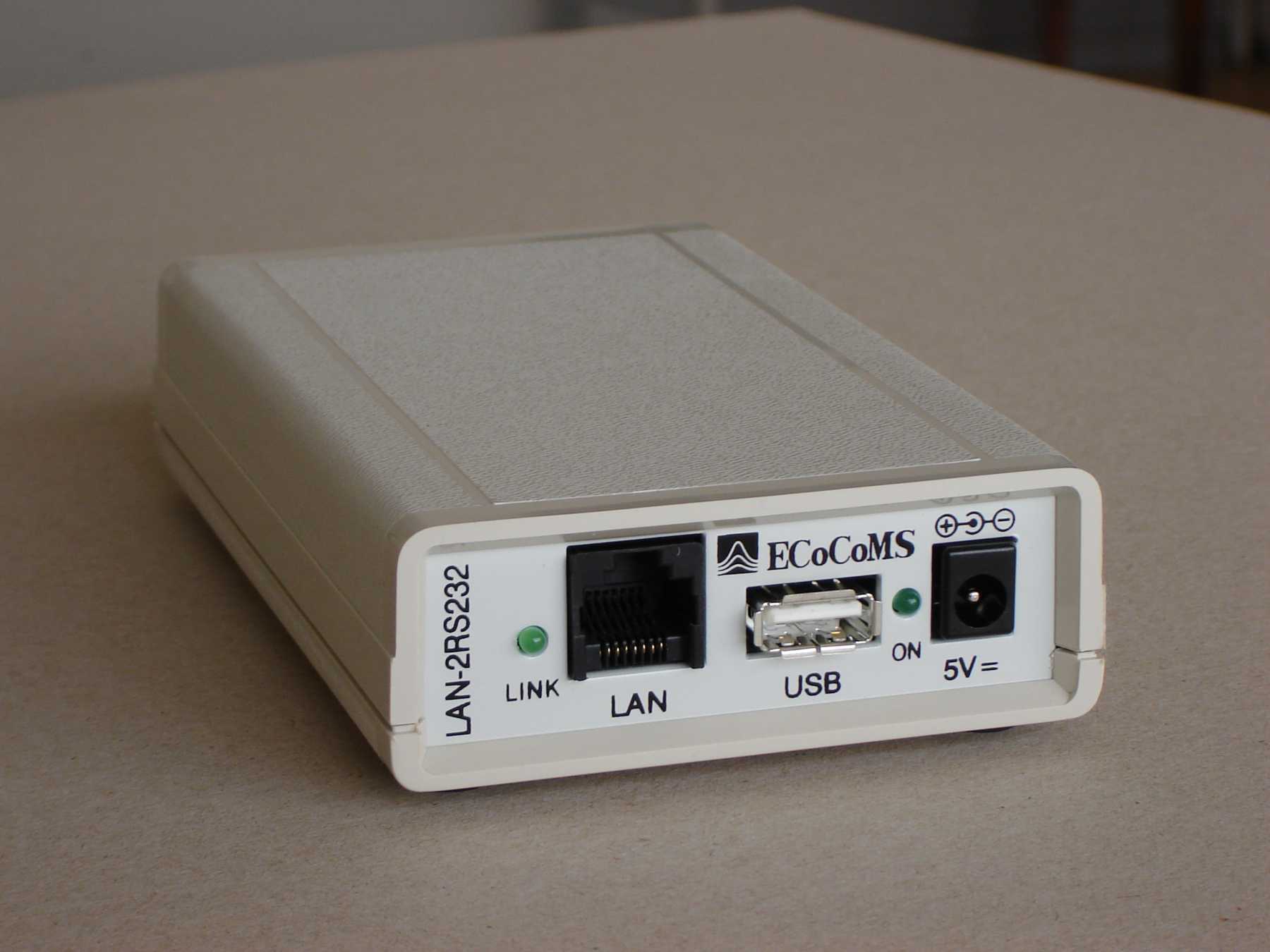

Converter RS232 to Ethernet(2RS232)

2RS232 is a device allowing a data transmission from two RS232 ports via IP network (Ethernet) to a given server. The device crates two clients each of them connected to a RS232 port and via LAN, conected to a server. The device configuration is performed via  Web interface which allows configuring all parameters of the RS ports as well of the network interfaces. The user interface allows  a database creation with all remote servers with theirs IP addresses with alfanumerical labels for user conveniance. Moreover it is very easy to describe the connection ports, defining which of the 6-th RS remote interface will be activated. The device allows transmission of ASCII as well binary data.

The device provide a standard USB interface, which increases a lot its functionality.
For instance applictaions for WiFi Data Acquisition Systems, Dynamic and Static Router, Specialized firewalls, WebCAM applictaions for surveillance and motion detect are possible e.t.c.

Technical Specifications of 2RS232 Converter:

• General

  • Processor: ARM9 processor with MMU CPU
  • CPU Speed: 200MHz
  • Power Supply 5VDC@550mA
  • System Reset: Watchdog timer
  • On Broad RTC
• Memory
  • System:32 MB SDRAM
  • Flash Interface:16 MB / jffs2
• Network  Interface

  • Ethernet:10/100 Ethernet interface - autosense LED indicators
• Device I/O
  • Com1-2: serial port RS-232 compatible for connection to external devices.
  • USB 2.0 Interface. (Drivers for a wide range of devices like WiFi,USB2LAN, DiskStorage, WebCAM e.t.c.)

• Software

  • Operating Systems - Linux, RedBoot
• Mechanical

  • Dimmensions:90mmx120mmx31mm
  • Working Temperature Range: from -20º to + 70º C
  • Оption: Extended Temperature Range from -40º to + 80º C
