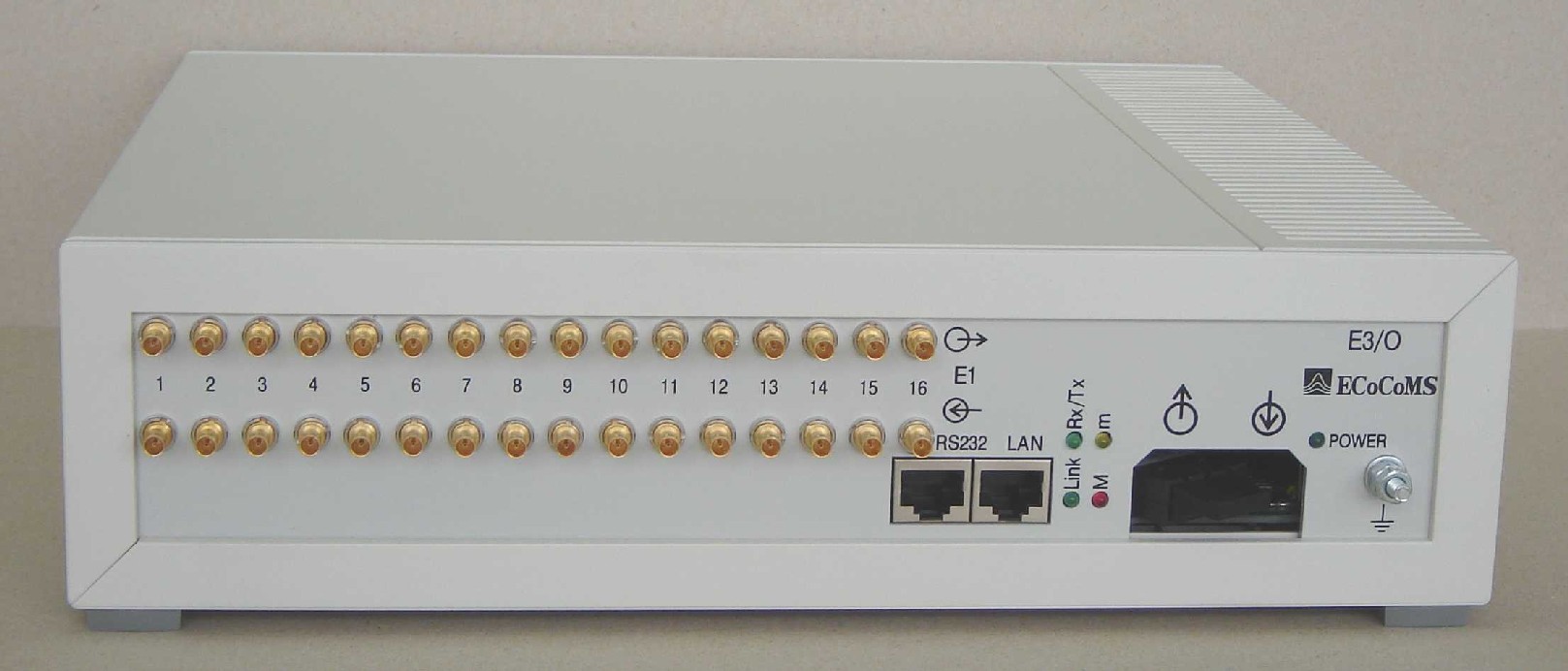

Multiplexer  E3
Multiplexer E3 is PDH compact network element of medium capacity. It can be used as an access system for customer located applications or a wireline transmission system.

  • Optical interface:E3 optical
    • Optical Transmitter: Laser
    • Optical Receiver: PIN photodiode
    • Optical cable type: "single mode"
    • Number of fibers: 2 or 1
    • Optical TX level: -13dBm
    • Optical RX level: -34dBm
    • Wave length: 1310nm
    • Code: NRZ scrambled<
    • Connector: SC/PC
    • Bit rate: 34Mbit/s
    • Max. overall cable attenuation: 21dB
  • Interface: E1 G.703
    • Number of ports: 16xE1
    • Bit rate : 2048 kbit/s ±50ppm; G.703;
    • Code:HDB3
    • Impedance: 120ohms or 75 ohms with adapter
    • Connector: RJ 45/ BNC
  • Detection of basic alarms
  • Management interface: RS.232

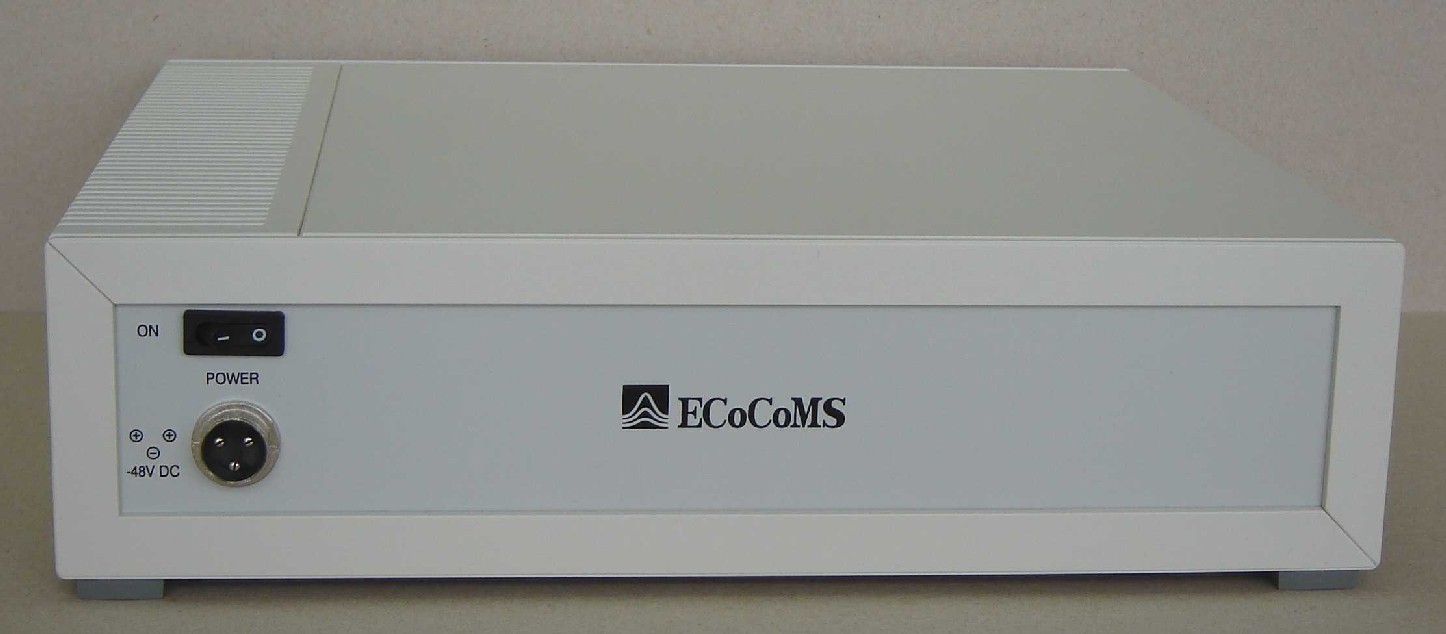

  • Power supply :
    • Direct power supply: -48V DC
    • With AC/DC converter: 230V/22V, AC/DC
  • Temperature: from -5°C to +45°C
  • Dimension: 290x260x80 mm
  • Weight: 600g
