2RS232 Converter

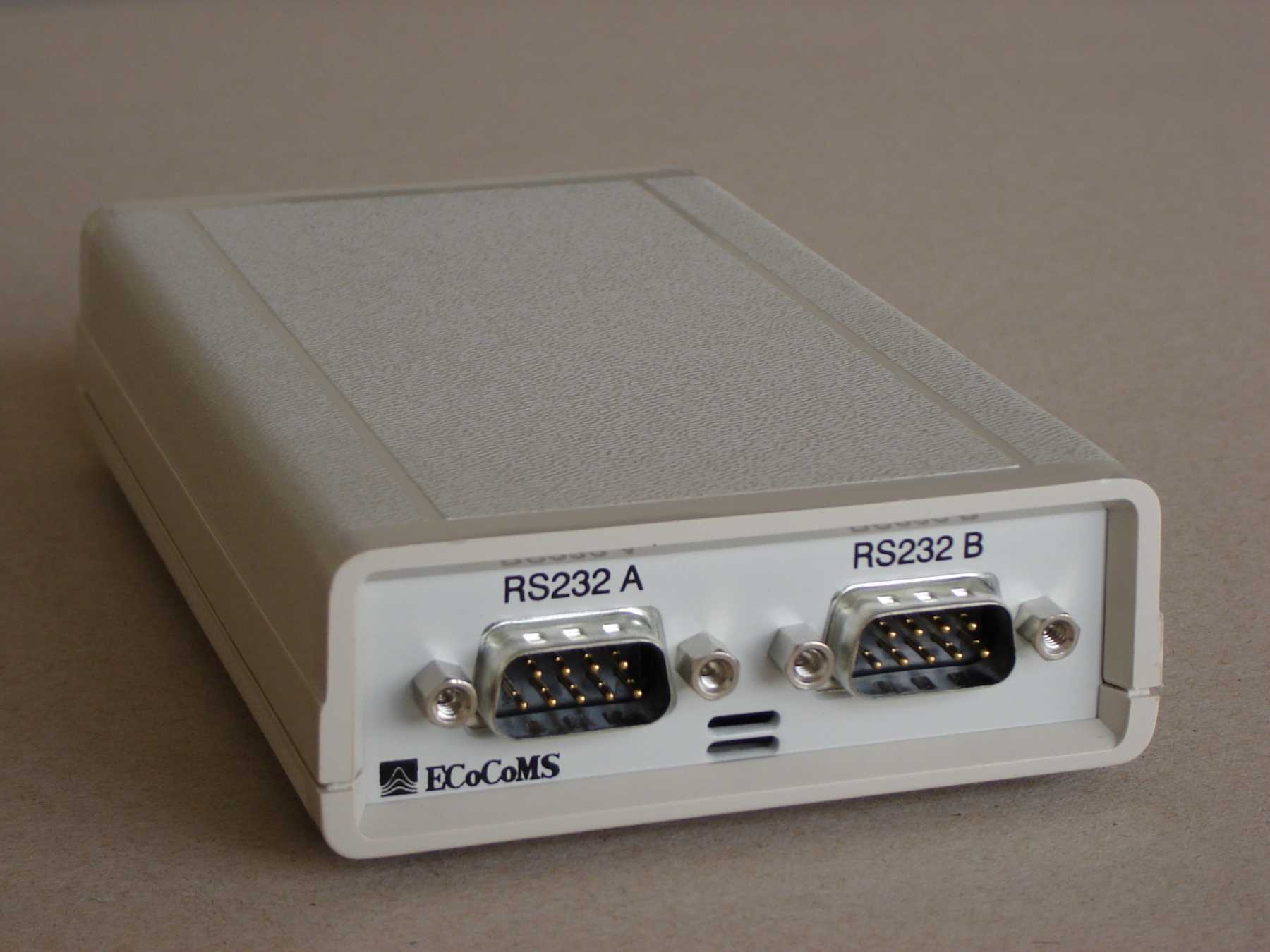

2RS232 is a device allowing a data transmission from two RS232 ports via IP network (LAN) to a given server. The device crates two clients each of them connected to a RS232 port and via LAN, conected to a server. The device configuration is performed via  Web interface which allows configuring all parameters of the RS ports as well of the network interfaces. The user interface allows  a database creation with all remote servers with theirs IP addresses with alfanumerical labels for user conveniance. Moreover it is very easy to describe the connection ports, defining which of the 6-th RS remote interface will be activated. The device allows transmission of ASCII as well binary data.

The device provide a standard USB interface, which increases a lot its functionality.
For instance applictaions for WiFi Data Acquisition Systems, Dynamic and Static Routers, Specialized firewalls, WebCAM applictaions for surveillance and motion detect are possible e.t.c.

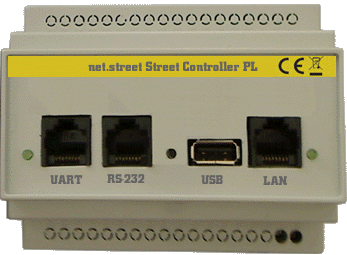

A modification of the device, adapted for DIN-bus mounting, can be used for "intelligent building" implementation or other home automation systems. It can be used as street (segment) controller in street light control system s well as any specific application with high "intelligence".

Technical Specifications of 2RS232 Converter:

• General

  • Processor: ARM9 processor with MMU CPU
  • CPU Speed: 200MHz
  • Power Supply 5VDC@550mA
  • System Reset: Watchdog timer
  • On Broad RTC
• Memory
  • System:32 MB SDRAM
  • Flash Interface:16 MB / jffs2
• Network  Interface

  • Ethernet:10/100 Ethernet interface - autosense LED indicators
• Device I/O
  • Com1-2: serial port RS-232 compatible for connection to external devices.
  • USB 2.0 Interface. (Drivers for a wide range of devices like WiFi,USB2LAN, DiskStorage, WebCAM e.t.c.)

• Software

  • Operating Systems - Linux, RedBoot
• Mechanical

  • Dimmensions:90mmx120mmx31mm
  • Working Temperature Range: from -20º to + 70º C
  • Оption: Extended Temperature Range from -40º to + 80º C
