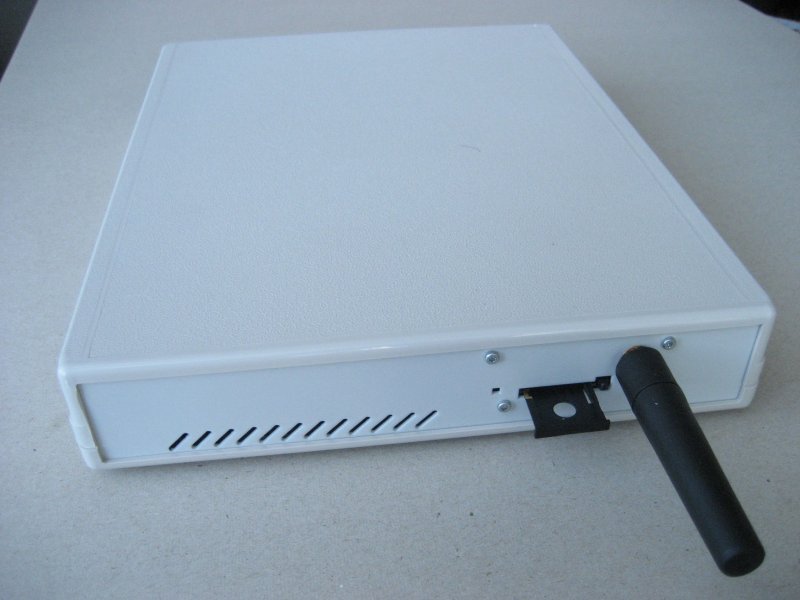

CIRGSM Gateway

CIRGSM represents a gateway, allowing the transmission via IP environment (LAN) of information, arriving on RS232 port to a given server for later processing. The operating system create a socket, listening on user defined port and when a client is connected to this port the transmission of the information received on RS232 starts. When the IP network fails the CIRGSM gateway, with Wavecom GSM module inside, dials GSM modem from a user defined list and provide a backup channel to the server until the IP network is recovered. Additionally the device provides power supply 12V and 48V, which can be switched remotely on and off by operator. This permits to perform a restart of external devices on user demand. As a fully alarm situation the system allows via the GSM moule  a full restart to be performed on all devices including CIRGSM gateway itself.

Technical specifications of CIRGSM gateway:

• General
  • Processor: ARM9 processor with MMU CPU
  • CPU Speed: 200MHz
  • power supply 5VDC@550mA without the external devices
  • System Reset: Watchdog timer
  • On Broad RTC
• Memory

  • System:32 MB SDRAM
  • Flash Interface:16 MB / jffs2
• Network Interface
  • Ethernet:10/100 Ethernet interface - autosense LED indicators
• Device I/O
  • Com1: serial port RS-232compatible for connection to external device.
  • Com2: serial port conenected to the Wavecom GSM Modem

• Software

  • Operating Systems - Linux, RedBoot
• GSM module
  • Fastrack M1306B
• Mechanics

  • Dimmensions: 238mmx189mmx31mm
  • Working Temperature Range: from -20º to + 70º C
  • Option: Extended Temerature Range: from -40º to + 80º C
