RS6SW Converter

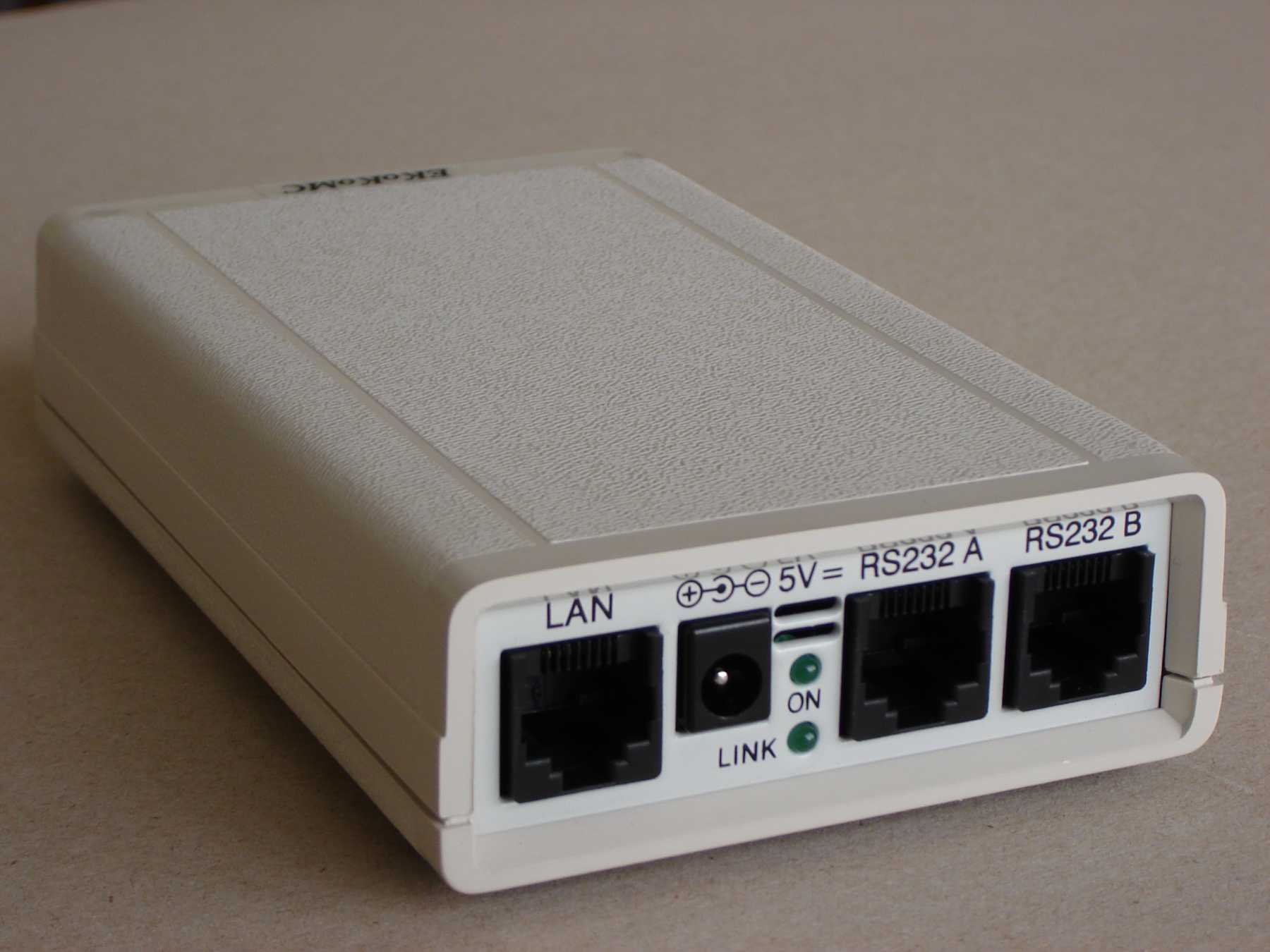

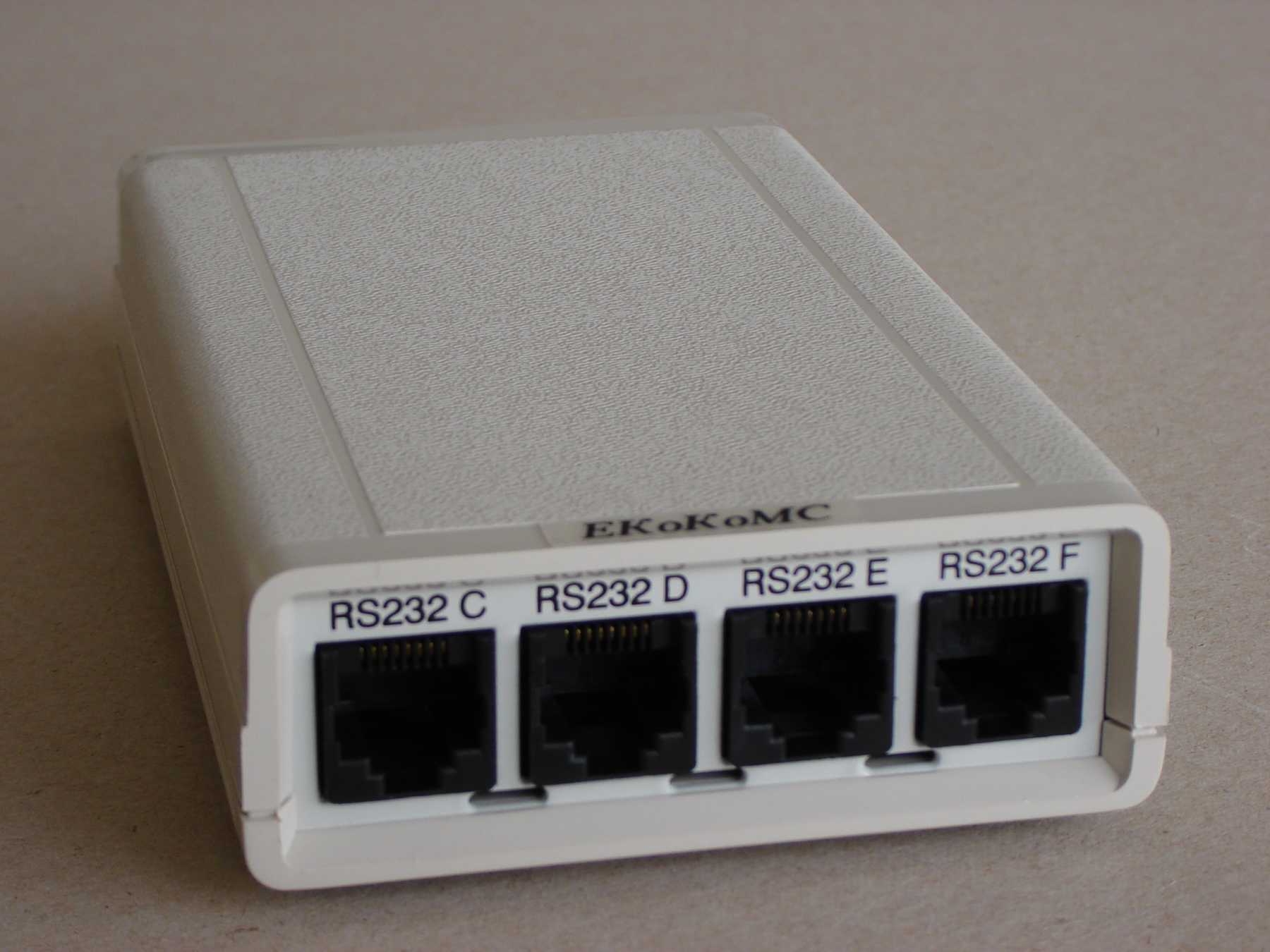

RS6SW is a device for transmission of 6 RS232 ports via LAN. RS6SW allows simultainous transmission olnly of two RS232 ports. The device create 6 sockets, listening on 6 user defined ports. When a client is connected to some of these ports the data transmission starts on the RS232 port assigned by the user on this sockect. On request for connection on port when the two RS232 interfaces are active new connectin is not enabled. The devie is configured via Web interface and all parameters are configured on the RS interfaces and on the network interface as well. The user interface allows to describe all 6 RS ports with alfanumerical labels for conveniance to the user. ASCII as well binary data transmission is possible via the device.

Technical specification of RS6SW converter:

• General

  • Processor: ARM9 processor with MMU CPU
  • CPU Speed: 200MHz
  • Power Supply 5VDC@550mA
  • System Reset: Watchdog timer
  • On Broad RTC
• Memory

  • System:32 MB SDRAM
  • Flash Interface:16 MB / jffs2
• Network Interface

  • Ethernet:10/100 Ethernet interface - autosense LED indicators
• Device I/O
  • Com1-6: serial port RS-232 compatible за свързване към външно устройство.
• Software

  • Operating Systems - Linux, RedBoot
• Mechanical

  • Dimmensions: 90mmx120mmx31mm
  • Working Temperature Range: from -20º to + 70º C
  • Option: Extended Temperature Range: from -40º to + 80º C
