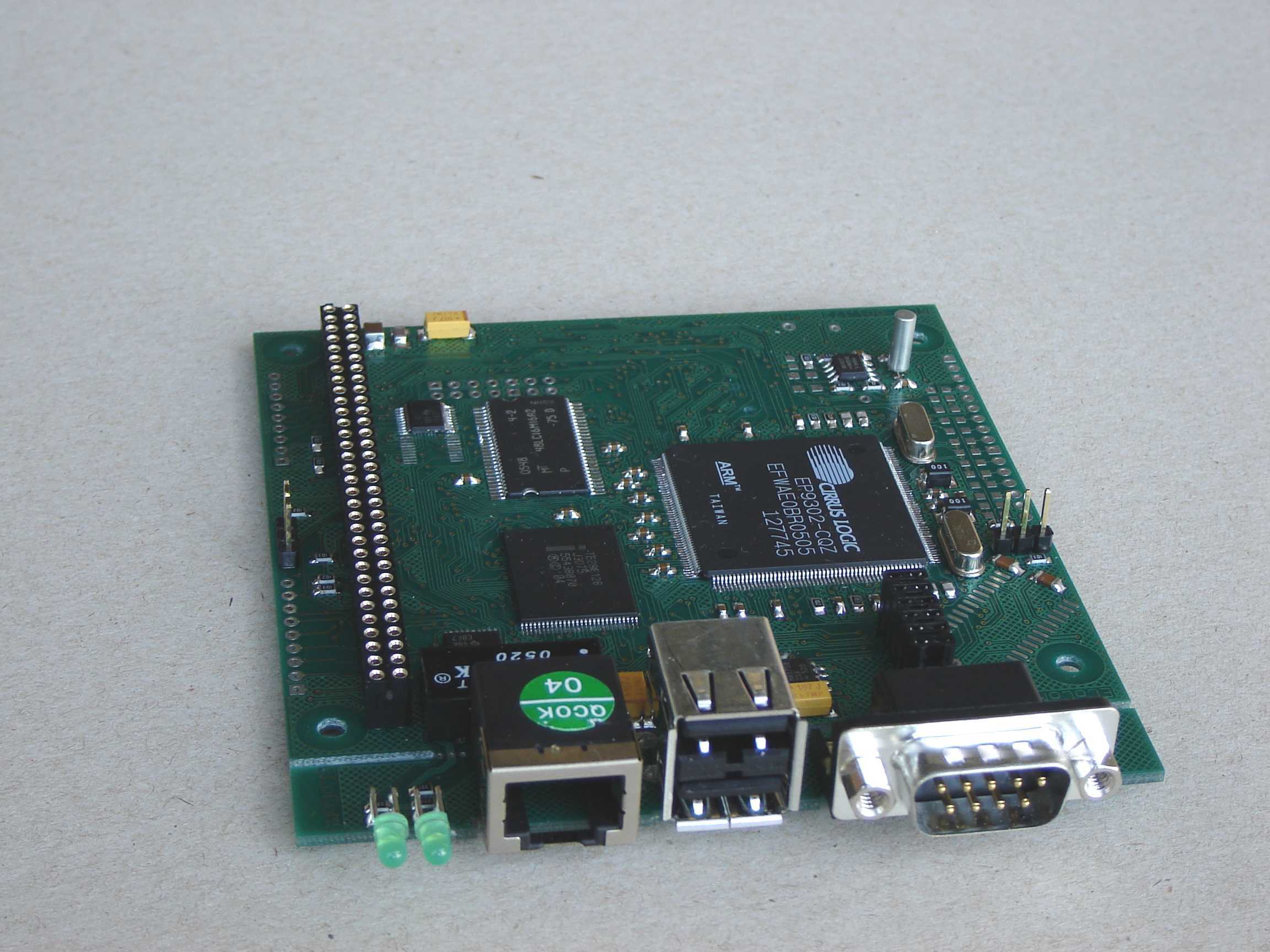

ECoARM9EP9302

Technical Description

  • General
    • Processor:ARM9 processor with MMU
    • CPU Speed: 200MHz
    • Power:5V DC @ 550 mA
    • System Reset: Watchdog timer
    • Compatibility: PC/104 8/16 bit bus
  • Memory
    • System 32 MB SDRAM (64 MB optional)
    • Flash Interface: 16 MB / jffs2 support
    • SD Card support
  • Network Interface
    • Ethernet:10/100 Ethernet interface – auto sense, LED indicators
    • Network Boot: Boots Linux out of the box
  • Device I/O
    • Com1: serial ports with 16 Byte FIF Os RS-232compatible.
    • Com2: Optional RS-485 support on COM2 with fully automatic TX enable control
    • Other :2 USB host ports
  • Software
    • Operating Systems Linux, RedBoot
  • Mechanical
    • Board Size 90mm x 96mm
    • Operating Temperature Range: -20° to +70°C
    • Optional Extended Temperature Range: -40° to +80°C

More information you can get from the pdf file:
