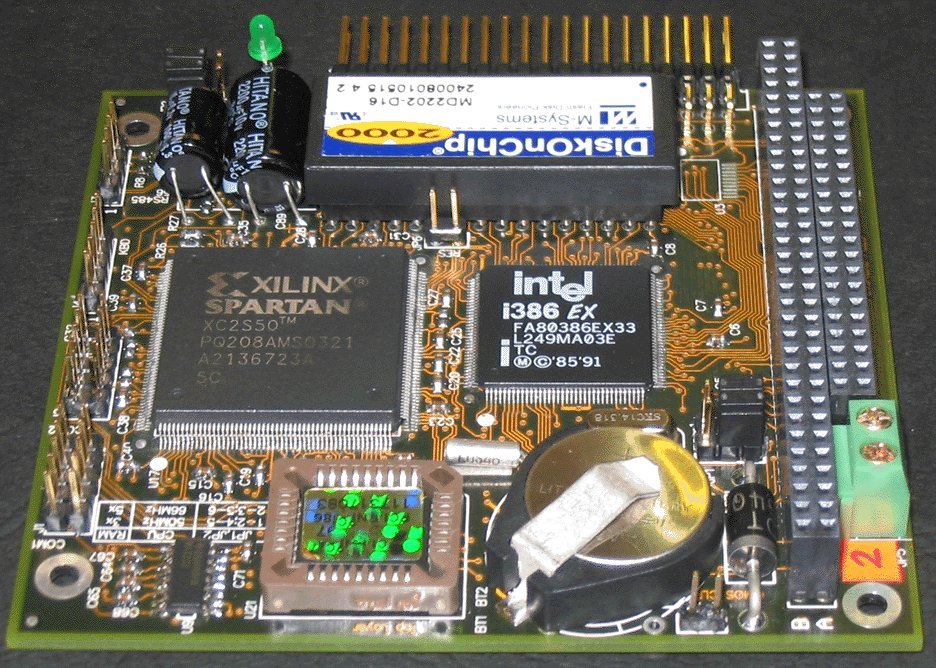

Technical description

• General
  • Processor INTEL 386 EX
  • CPU Speed 25 / 33 MHz
  • Power +5V±5%@0.94Atyp.4.7W
  • System Reset Watchdog timer.
  • Compatibility PC104 - 8/16
  • RTC on board
  • Interrupt/DMA support
• Memory
  • System RAM 8, 16, 32 or 64 KB SDRAM, soldered on-board, operating from 0 to 15 wait states •
  • Flash Interface On board DOC/Flash Socket.
• Device I/O
  • IDE Interface IDE interface (also fits Compact Flash socket or Disk OnModule) PC104 Master /Slave connector
  • Com1 RS-232 serial interface with 10-pin header
  • Com2 RS-232/RS-485 serial port
• Software
  • Operating Systems- Runs any software or operating system that runs on a standard 386 based PC Ideal for MS DOS, Free DOS, Linux applications that are not time critical, but are required to operate on large quantities of data
  • BIOS- EESBIOS 256 Kbytes utility
• Mechanical
  • Board Size 90mmx96mm
  • Storage Temperature from -40º to +85º C
  • Operating Temperature from 0º to + 60º C no airflow
