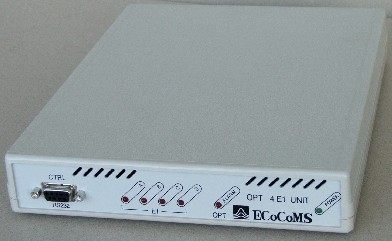

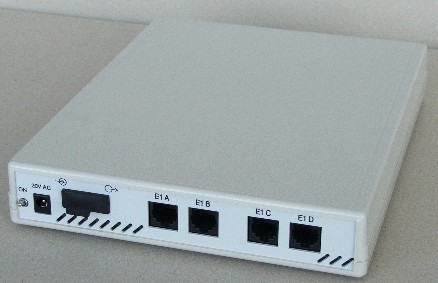

Optical multiplexer  4 x E1


  • Line interface:
    • Optical Transmitter: Laser
    • Optical Receiver: PIN photodiode
    • Optical cable type: "single mode"
    • Number of fibers: 2
    • Optical TX level: -13dBm
    • Optical RX level: -38dBm
    • Wave length: 1300nm
    • Code: NRZ scrambled
    • Connector: SC/PC
    • Bit rate: 4 x 2048 kbit/s payload
    • Max. overall cable attenuation: 25dB
  • User interfaces E1:
    • Number of ports: 4
    • Bit rate : 2048 kbit/s ±50ppm; G.703;
    • Code:HDB3
    • Impedance: 120 ohms or 75 ohms via adapter
    • Connector: RJ 45
  • Management: local and remote
  • Management interface: RS.232
  • Power supply
    • Direct power supply: -48V DC
    • With AC/DC converter: 230V/22V, AC/DC
  • Temperature: from -5°C to +45°C
  • Dimension: 238x189x31 mm
  • Weight: 600g
